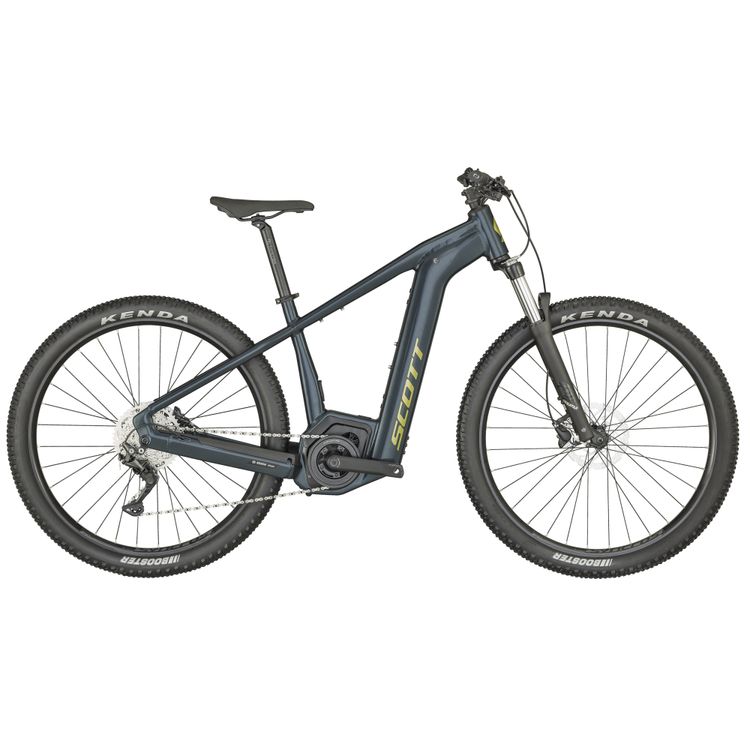

- The SCOTT Aspect eRIDE 930 features proven electric assist technology in a comfortable off-road package. With an integrated battery, and a Bosch drive system, the Aspect eRIDE will give you hours of trail riding energy.
Please note that bike specifications are subject to change without prior notice
-
Frame
6061 Alloy custom butted tubing
Bosch Integr. removable Battery
internal cable routing -
Travel
120mm -
Fork
SR Suntour XCM34 Coil
15x110mm QR axle / Tapered Steerer
Remote Lockout / 120mm travel -
Remote System
SR Suntour Remote
-
Drive Unit
Bosch Performance
EU: 25kmh / INT: 20mph -
Battery
PowerTube 625Wh -
Display
Bosch LED Remote -
Charger
4A Charger -
Rear Derailleur
Shimano RD-M5120 / 10 Speed -
Shifters
Shimano SL-M4100 -
Crankset
FSA CK-200 / 165mm -
Chainring
FSA WB437 32T w/CG -
Chain
KMC e10S -
Cassette
Shimano CS-M4100 11-46 -
Brakes
Shimano BR-MT200 Disc -
Rotor
Front: SM-RT30 CL 180mm / Rear: RT-EM300 CL 180mm -
Handlebar
Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise
Syncros Comfort lock-on grips -
H’stem
Syncros 3.0 / 7° / Black -
Seatpost
Syncros 3.0 / 31.6mm -
Seat
Syncros ER2.5 -
Headset
Acros / 1.5″- 1.5″
semi integ. OD 50/61mm / ID 44/55mm -
Hub (Front)
Shimano HB-MT400-B CL / 15x110mm -
Hub (Rear)
Shimano FH-MT400-B CL / Boost 12x148mm -
Spokes
Stainless Black -
Rims
Syncros X18 / 32H / 30mm / Pin Joint -
Front Tire
Kenda Booster 29×2.6″ / 30TPI -
Rear Tire
Kenda Booster 29×2.6″ / 30TPI -
Lights
Bosch Light Cable pre-installed F&R -
Approx weight in KG
25.9 -
Approx weight in LBS
57.1 -
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
